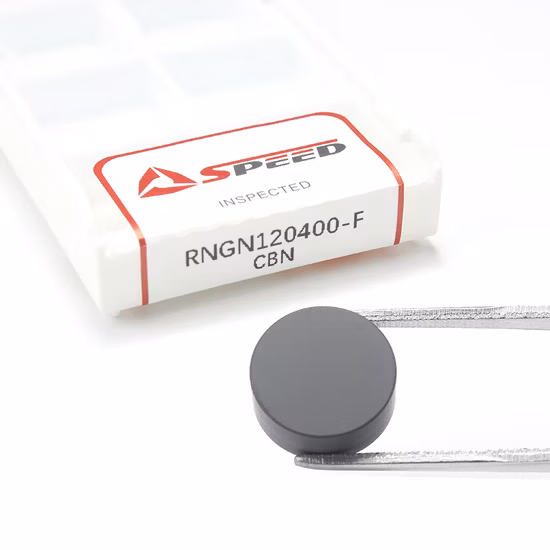

Solid CBN Tool for Roughing or Semi

Basic Info.

Model NO.	RNMG1204
HS Code	8207701000
Production Capacity	1000000PCS/Year

Product Description

Solid CBN tool for roughing or semi-finishing cutting Technical features
This series of tools are widely used in rollers, brake discs, brake drums, pumps, cylinder liners, etc.
Blade Type Representation Rules
Application of polycrystalline CBN materials

Recommended CBN grades	CBN content	Cutting state	Subdivision of processed materials
LBN930	88%/93%	Continuous to strongly interrupted machining of chilled cast iron	Cast iron, alloy cast iron, hardened steel with hardness greater than HRC45
LBN900	85%/90%	Continuous to strongly interrupted machining of cast iron	Cast iron, alloy cast iron, ductile iron
LBN750	70%/75%	Continuous to Interrupted Machining of Hardened Steels	High speed cutting continuous, light interrupted cutting hardened steel, high Ming cast iron
LBN650	60%/65%	Continuous machining of hardened steel	Ductile iron, continuous high-speed machining hardened steel

Overall blade

Product advantages
1. Lathes instead of grinding machines, lower machine tool investment2. Process integration, lower energy consumption3. The turning process has better flexibility4. Higher processing efficiency5. Effectively reduce blade inventory6. Scrap is easier to collect7. Do not need cutting fluid, environmental protection and economic
